4 Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C Cab
The machine you buy when a 1 - 2 ton digger is too small and a full-size excavator is too much. Kubota D1703 24.4 HP diesel, enclosed A/C cab, factory hydraulic thumb, side swing boom and a 131 inch dig depth.
- Kubota D1703-E4B 24.4 HP diesel
- 131 in dig depth, 198 in dig height
- Enclosed cab with air conditioning
- Factory hydraulic thumb, 35 mm pin
- Side swing boom
- Pilot controls and dual-speed travel
The numbers that matter
Built to work, priced to own.
Six reasons this 3.8 ton Kubota machine is the most excavator you can put on a 10,000 lb trailer.
Kubota D1703 diesel
1,647 cc, 24.4 HP, one of the most common small diesels in North America. Filters, belts and parts at any Kubota dealer.
131 inch dig depth
Deep enough for water lines, septic laterals, footings and 8 foot trenches without a bigger machine.

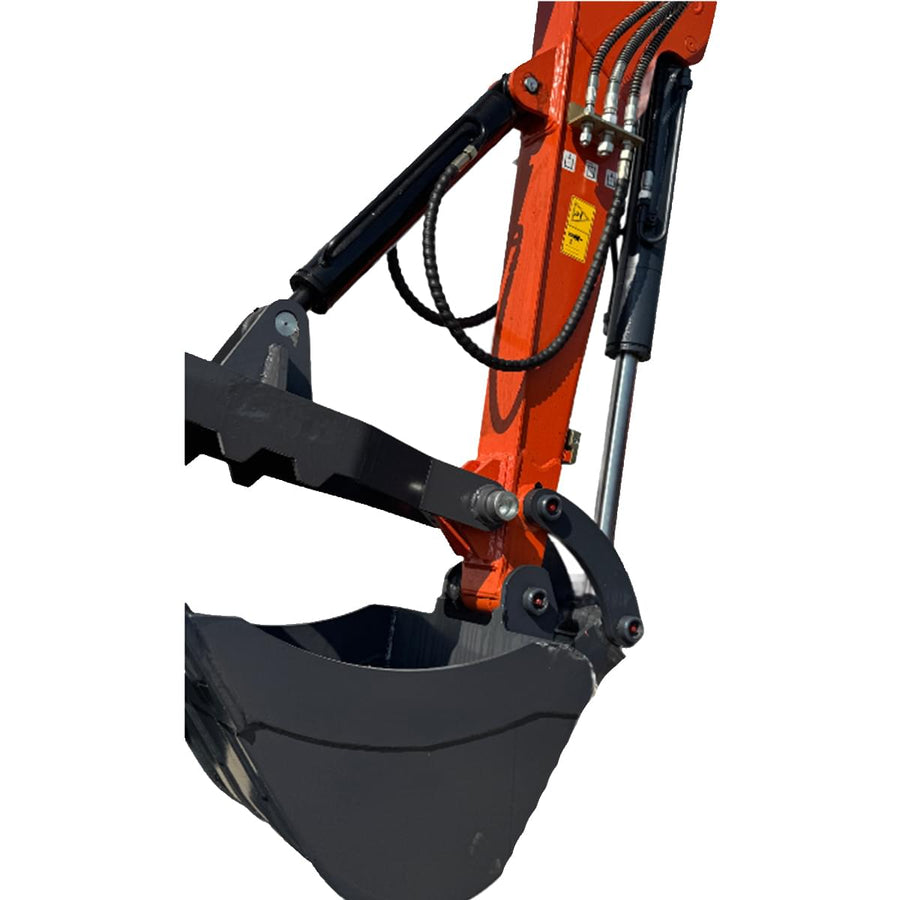

Hydraulic thumb from the factory
Grab rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
Side swing boom
Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.
Enclosed A/C cab
Heat, cold, dust and rain stay outside. Operators stay productive for the full shift.
Serious hydraulics
17.75 gal/min at 3,553 psi runs a breaker, auger or grapple through the standard auxiliary lines.
Real work, real jobsites.

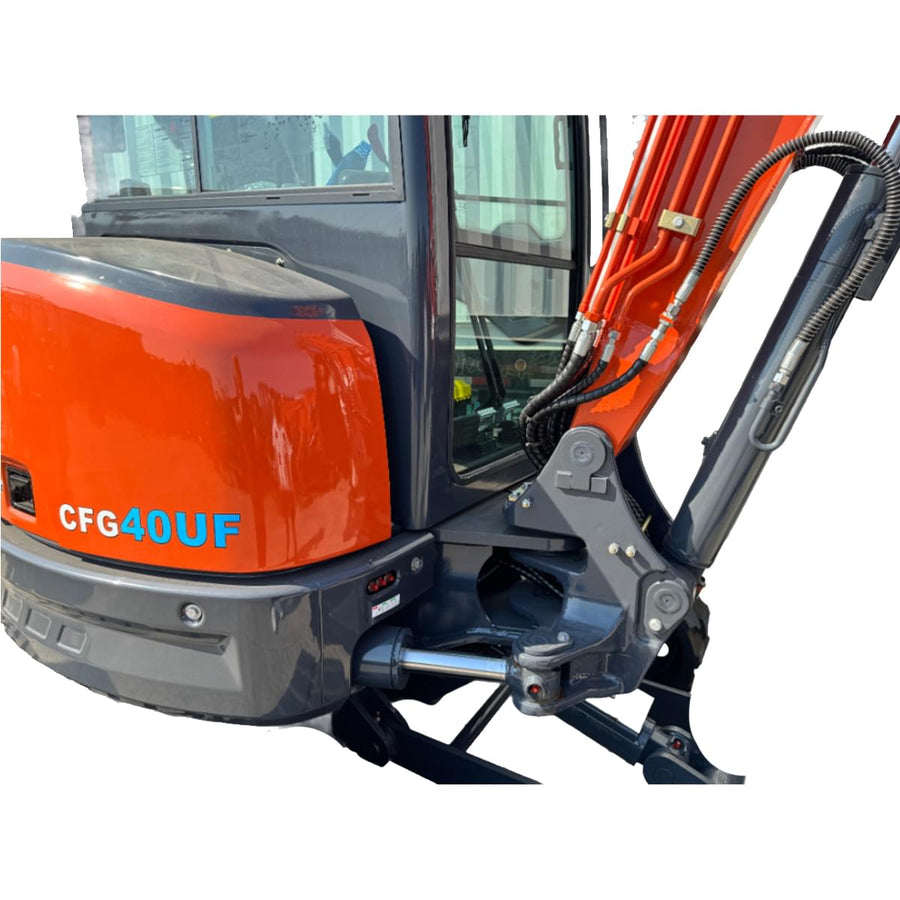

Dig flush against the wall
Offset the boom and cut tight to a foundation or fence line without moving the tracks.
Pick, place and clear
Stumps, boulders, pipe and demolition debris - the thumb turns the bucket into a grapple.

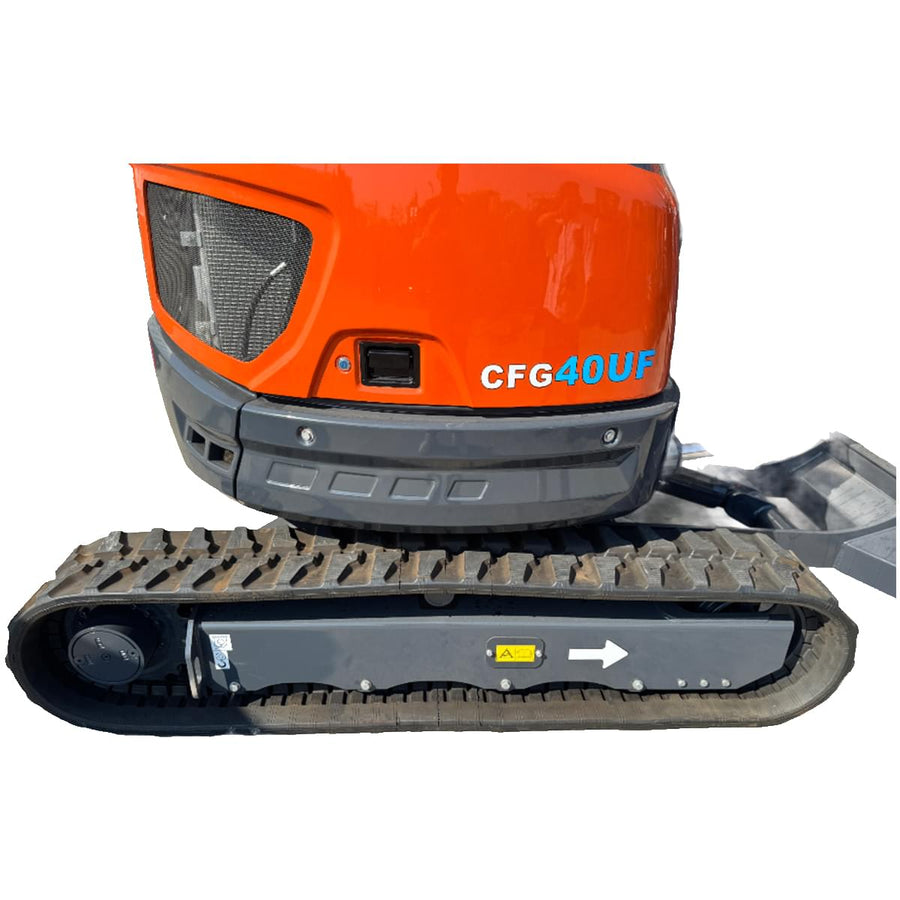

300 mm rubber tracks and dozer blade
Low ground pressure on lawns and soft ground, and a blade to backfill and grade behind you.
Specifications and what is included

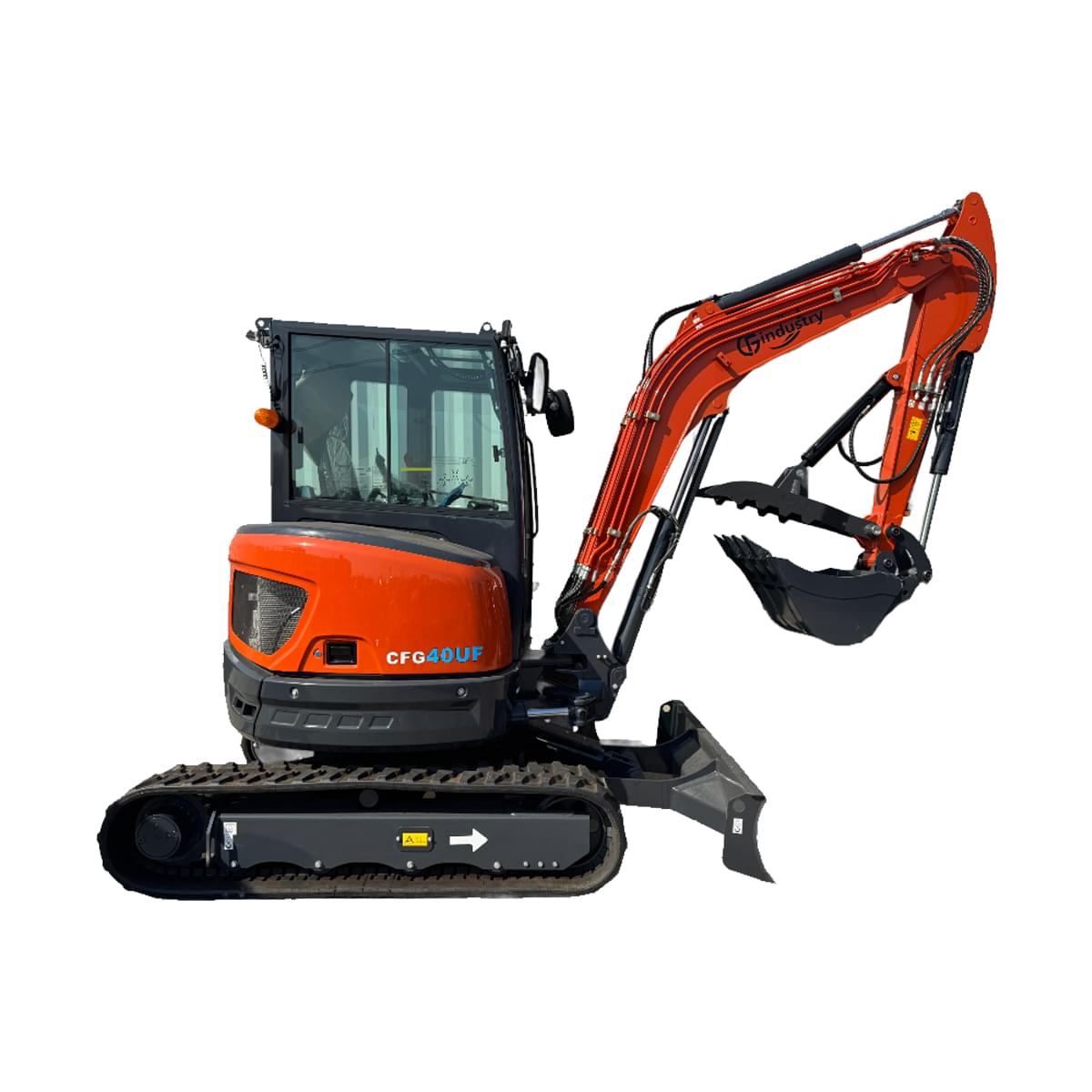

The 3800 UF is the machine you buy when a 1-2 ton digger is too small and a full-size excavator is too much. A 3.8 ton (8,377 lb) operating weight, a Kubota D1703-E4B 24.4 HP diesel, an enclosed cab with air conditioning, a factory hydraulic thumb and a side swing boom put real contractor capability in a footprint that still fits through a 67 inch gate. Dig to 131 inches (3.32 m), reach 219 inches at ground level and load a truck from 138 inches up, all day, in a climate-controlled seat.
It is built for property owners with acreage, farms, landscapers, fencing and drainage crews, utility contractors and municipal teams who would rather own a machine than keep renting one. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states.
What your order includes
- Brand-new 4 ton mini excavator, enclosed cab
- Kubota D1703-E4B 24.4 HP EPA-compliant diesel engine
- Factory hydraulic thumb (35 mm pin) fitted to the arm
- 520 mm (20 in) standard digging bucket
- Air conditioning, suspension seat, LED work lights, rearview mirrors, cup holder
- Hydraulic pilot controls with dual-speed travel
- Dozer blade, 300 mm rubber tracks, breaker and auxiliary piping
- Owner's manual, tool kit and a fully crated heavy-item freight preparation for U.S. delivery
Eight reasons this machine wins
- Kubota D1703 diesel. 1,647 cc, 24.4 HP, one of the most common small diesels in North America. Filters, belts and parts are available at any Kubota dealer.
- 131 inch dig depth. Deep enough for water lines, septic laterals, footings and 8 foot trenches without a bigger machine.
- Hydraulic thumb from the factory. Grab rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
- Side swing boom. Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.
- Enclosed A/C cab. Heat, cold, dust and rain stay outside. Operators stay productive for the full shift.
- Pilot controls and dual-speed travel. Smooth, low-effort joysticks and a high range for moving across the site.
- Serious hydraulics. 17.75 gal/min at 3,553 psi runs a breaker, auger or grapple through the standard auxiliary lines.
- Trailer-friendly. 67 inches wide and 100.5 inches tall, so it moves on a 10,000 lb class equipment trailer behind a 3/4 ton pickup.
In the field
- Utility and drainage trenching - water, sewer, electrical conduit, French drains and culverts.
- Foundations and footings - basements, additions, retaining walls and pier holes.
- Land clearing - stumps, brush and rock with the hydraulic thumb.
- Farm and ranch - fence lines, ponds, stock tanks, irrigation and manure handling.
- Landscaping and hardscape - grading pads, moving boulders, planting mature trees.
- Demolition and municipal work - sidewalks, small structures, storm drain repairs.
Specifications
| Dimensions | |
|---|---|
| Operating weight | 3.8 ton (8,377 lb) |
| Overall length | 4,890 mm (192.5 in) |
| Overall width | 1,700 mm (67 in) |
| Overall height | 2,555 mm (100.5 in) |
| Track size | 300 x 55 x 84 (W x P x L), rubber |
| Working range | |
| Max digging depth | 3,320 mm (131 in) |
| Max digging height | 5,045 mm (198 in) |
| Max dumping height | 3,520 mm (138 in) |
| Max reach at ground | 5,575 mm (219 in) |
| Dozer blade width | 1,700 mm (67 in) |
| Dozer blade height | 366 mm (14 in) |
| Blade max lift / drop | 336 mm (13 in) / 336 mm (13 in) |
| Engine and hydraulics | |
| Engine | Kubota D1703-E4B, 3-cylinder diesel |
| Rated power | 18.2 kW (24.4 HP) |
| Displacement | 1,647 cc |
| Fuel capacity | 40 L (10.6 gal) |
| Hydraulic flow | 67.2 L/min (17.75 gal/min) |
| Hydraulic pressure | 24.5 MPa (3,553 psi) |
| Hydraulic tank | 41 L (10.8 gal) |
| Electrical | 12 V |
| Cab and features | |
| Cab | Enclosed FOPS/TOPS cab, air conditioning, suspension seat, washer and wiper |
| Controls | Hydraulic pilot control, dual-speed travel, slewing and travel parking brakes |
| Lighting | LED boom light, front cab light, warning light |
| Attachments | Hydraulic thumb, 520 mm bucket, 35 mm pin; breaker and auxiliary piping standard |
| Optional | 300 / 600 / 1,200 mm buckets, quick hitch piping, steel tracks |

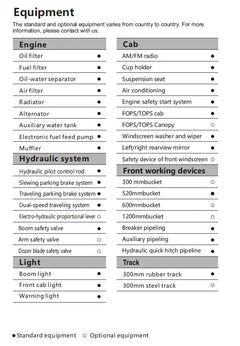

The lift capacity chart and the full standard / optional equipment list are in the product photos above.
What's in the crate, and how it gets to you
In the crate
- 1 x Excavons Titan 3800 UF 3.8 ton mini excavator, enclosed A/C cab
- 1 x factory hydraulic thumb, 35 mm pin (fitted)
- 1 x 520 mm (20 in) digging bucket
- 1 x dozer blade (fitted)
- LED work lights, mirrors, suspension seat (fitted)
- 1 x owner's manual and tool kit
- Timber freight crate, curbside delivery included
Shipping
Every machine ships strapped inside a timber crate on a flatbed by LTL freight. The carrier calls ahead to book a curbside delivery appointment. Freight is on us - you uncrate, fuel it and go to work.
Shipping, returns and warranty
Shipping and delivery
Returns
Warranty and support
Payment and financing
Do I need a licence or a special trailer?
How do I track my order?
What owners say about this machine
"Kubota engine, standard filters, nothing exotic. I service it myself in the shop. For the money there is nothing close on the market right now."
"The swing boom is the reason I bought it. I can dig tight to the foundation on a 4 foot side yard without moving the machine every two feet."
"Called support twice with spec questions before I ordered and got a real person both times. That is what made me pull the trigger."
Owner feedback collected by Excavons. Names shortened at the owner's request.
Same cab, lower price
3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom
The 3.5 ton Yanmar model is the sibling with the same enclosed A/C cab and hydraulic thumb, a 124 inch dig depth and a rear-view camera, for less money.
$3,499.00 today instead of $7,499.00
Free freight, the hydraulic thumb and A/C cab, a 1-year warranty and a support line that picks up. Limited stock at this price.
