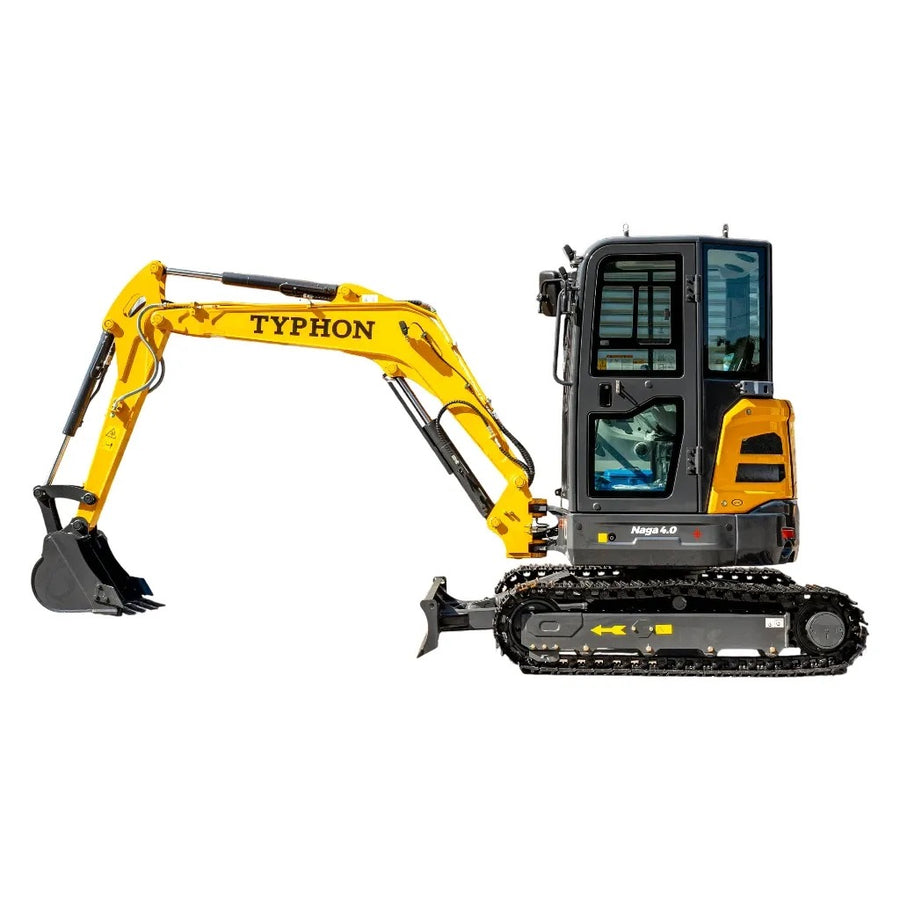

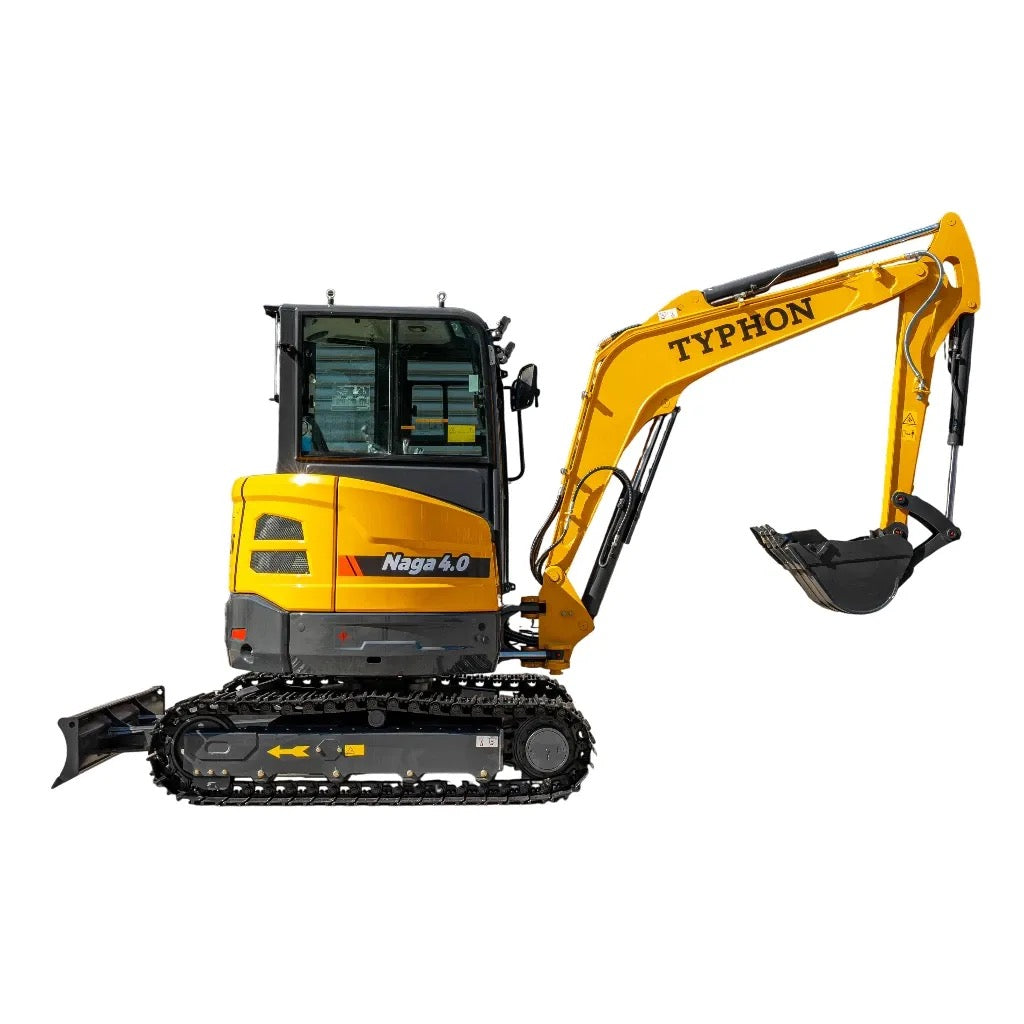

TYPHON NAGA 4.0 - 4 Ton Yanmar Diesel Mini Excavator with Steel Tracks, Enclosed A/C Cab and Zero Tail Swing
A 4 ton machine built for the hardest version of every job. Yanmar 3TNV88F 24.4 HP diesel, heavy-duty steel tracks, 30.4 kN bucket breakout force, 55 degree boom swing and an enclosed cab with A/C, heater and a 7 inch touchscreen.
- Yanmar 3TNV88F 24.4 HP, Tier 4 Final + Stage V
- Heavy-duty steel tracks
- Zero tail swing, 360 degree rotation
- 55 degree boom swing left and right
- Enclosed cab with A/C and heater
- 7 inch smart touchscreen display
The numbers that matter
Steel tracks. Yanmar power. Zero excuses.
Six reasons contractors pick the NAGA 4.0 for demolition, rock and daily commercial digging.
Steel tracks from the factory
Demolition, rebar, rock and stump fields destroy rubber. Steel tracks shrug them off with better traction and a longer service life.
Yanmar 3TNV88F diesel
The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer.
30.4 kN bucket force
Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it. Real production digging in tough ground.
Zero tail swing
The rear stays inside the track width through a full 360 degree rotation. Safe beside walls, houses and live traffic.
55 degree boom swing
Offset digging along foundations, fences and road edges without repositioning the tracks.
Smart cab, easy controls
A/C and heater, ISO/SAE selectable joysticks, suspension seat and a 7 inch touchscreen with fault codes and maintenance reminders.
Real work, real jobsites.
Zero rear overhang, 360 degree rotation
An 860 mm tail swing radius keeps the counterweight inside the tracks, so you dig beside cars, walls and structures with confidence.

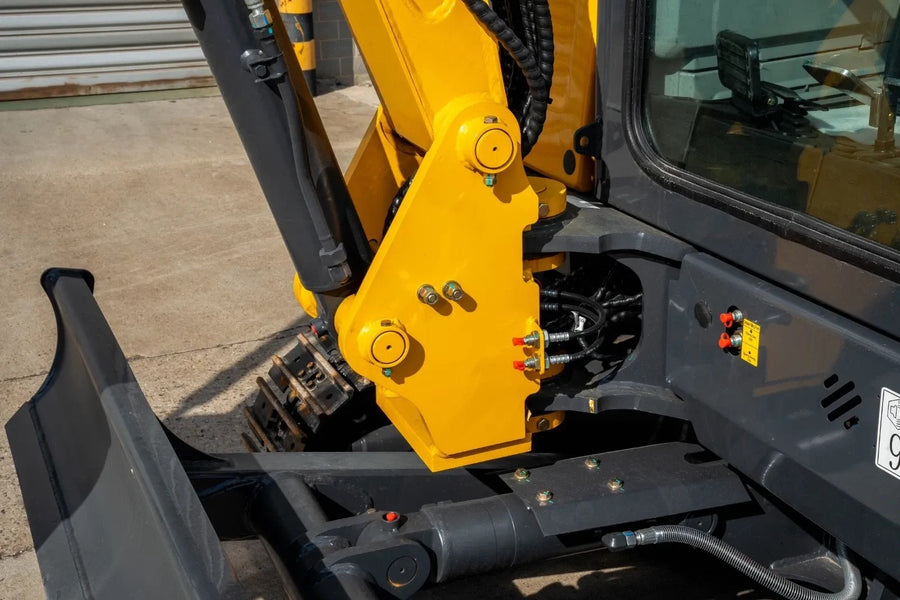

55 degrees of boom swing, both ways
Trench flush along walls, footings and curbs without repositioning - the boom swings, the tracks stay put.
A/C, heater and a 7 inch touchscreen
ISO/SAE selectable pilot controls, a suspension seat and live machine data keep any operator productive all shift.
Yanmar 3TNV88F under the hood
18.2 kW (24.4 HP) at 2,200 rpm, 1.642 L displacement, water-cooled, EPA Tier 4 Final and EU Stage V compliant.
Specifications and what is included
The TYPHON NAGA 4.0 is a 4 ton mini excavator built for the hardest version of every job: demolition, rock and daily commercial digging. It rides on heavy-duty steel tracks that outlast rubber in harsh conditions, swings its rear inside the track width with a zero tail swing design (860 mm tail swing radius, 360 degree rotation), and puts down a massive 30.4 kN bucket breakout force. Power comes from the world-renowned Yanmar 3TNV88F 3-cylinder diesel - 18.2 kW (24.4 HP) at 2,200 rpm, EPA Tier 4 Final and EU Stage V compliant.
A 55 degree left/right boom swing digs flush along walls and road edges without repositioning, and the enclosed cab with air conditioning and heater, ISO/SAE selectable controls and a 7 inch touchscreen display keep the operator productive through full shifts. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states.
What your order includes
- Brand-new TYPHON NAGA 4.0 4 ton mini excavator with enclosed A/C and heater cab
- Yanmar 3TNV88F 3-cylinder direct-injection diesel, 18.2 kW (24.4 HP), EPA Tier 4 Final / EU Stage V
- Heavy-duty steel tracks and dozer/trenching blade (fitted)
- 0.12 m3 / 650 mm standard digging bucket
- Auxiliary hydraulic circuit (96.8 L/min) with three-way stop valve for breakers, augers and thumbs
- 7 inch touchscreen display, ISO/SAE selectable pilot controls, suspension seat
- LED work lights, mirrors, openable front glass window
- Tool box, fire extinguisher, window-break and seatbelt-cutter tool, digital manual
- Fully crated heavy-item freight preparation for U.S. delivery
Eight reasons this machine wins
- Steel tracks from the factory. Demolition, rebar, rock and stump fields destroy rubber tracks. Steel shrugs them off and delivers better traction and service life.
- Yanmar 3TNV88F diesel. The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer.
- 30.4 kN bucket force. Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it - real production digging in tough ground.
- Zero tail swing. The rear stays inside the track width through a full 360 degree rotation - safe beside walls, houses and live traffic.
- 55 degree boom swing both ways. Offset digging along foundations, fences and road edges without repositioning the tracks.
- Enclosed A/C and heater cab. Openable front glass, suspension seat and low-effort pilot joysticks with ISO/SAE pattern selection for any operator.
- 7 inch smart touchscreen. Engine data, hydraulic status, working hours, fault codes, maintenance reminders and control pattern selection in one display.
- Auxiliary hydraulics ready. A 96.8 L/min circuit and three-way stop valve run breakers, augers and thumb attachments out of the crate.
In the field
- Demolition and concrete - steel tracks and auxiliary flow for a hydraulic breaker.
- Urban and confined-site excavation - zero tail swing beside structures and traffic.
- Utility and drainage trenching - water, sewer, conduit and French drains in tough soil.
- Foundations and footings - boom swing digs flush against walls and forms.
- Farm and ranch - fence lines, ponds, rock picking and heavy clearing on durable tracks.
- Roadside and municipal work - offset digging along curbs and edges, 30 degree gradeability.
Specifications
| Basic | |
|---|---|
| Class | 4.0 ton mini excavator |
| Overall dimensions | 4,880 mm L x 1,740 mm W x 2,550 mm H |
| Track type | Heavy-duty steel tracks |
| Track length / gauge | 2,155 mm / 1,440 mm |
| Tail swing | Zero tail swing design, 860 mm tail swing radius, 360 degree rotation |
| Gradeability | 30 degrees |
| Working range | |
| Bucket digging force | 30.4 kN |
| Arm digging force | 18.2 kN |
| Bucket | 0.12 m3 capacity, 650 mm width |
| Boom swing | 55 degrees left / 55 degrees right |
| Swing speed | 0 - 9 rpm |
| Travel speed | 2.4 / 4.4 km/h (2-speed) |
| Engine | |
| Engine | Yanmar 3TNV88F, 3-cylinder direct-injection diesel, water-cooled |
| Rated power | 18.2 kW (24.4 HP) at 2,200 rpm |
| Displacement | 1.642 L |
| Emission standard | EPA Tier 4 Final and EU Stage V |
| Fuel tank | 50 L |
| Engine oil | 6.7 L |
| Hydraulics | |
| Main pump | Plunger pump |
| Auxiliary circuit | 96.8 L/min standard, three-way stop valve for added functions |
| Hydraulic oil tank | 40 L |
| Cab and features | |
| Cab | Enclosed cab with air conditioning and heater, openable front glass window |
| Controls | ISO/SAE selectable pilot joysticks, suspension seat |
| Monitoring | 7 inch touchscreen: engine data, hydraulics, hours, fault codes, maintenance reminders |
| Safety and lighting | LED work lights, LED alarms, mirrors, fire extinguisher, window-break tool |

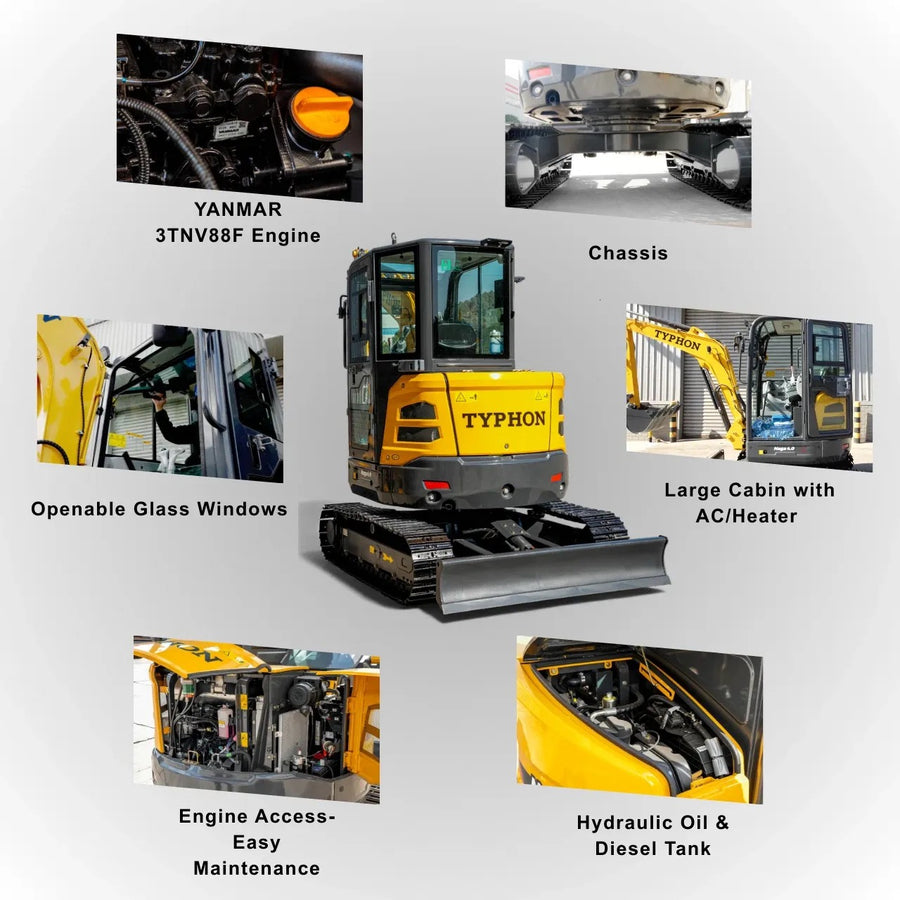

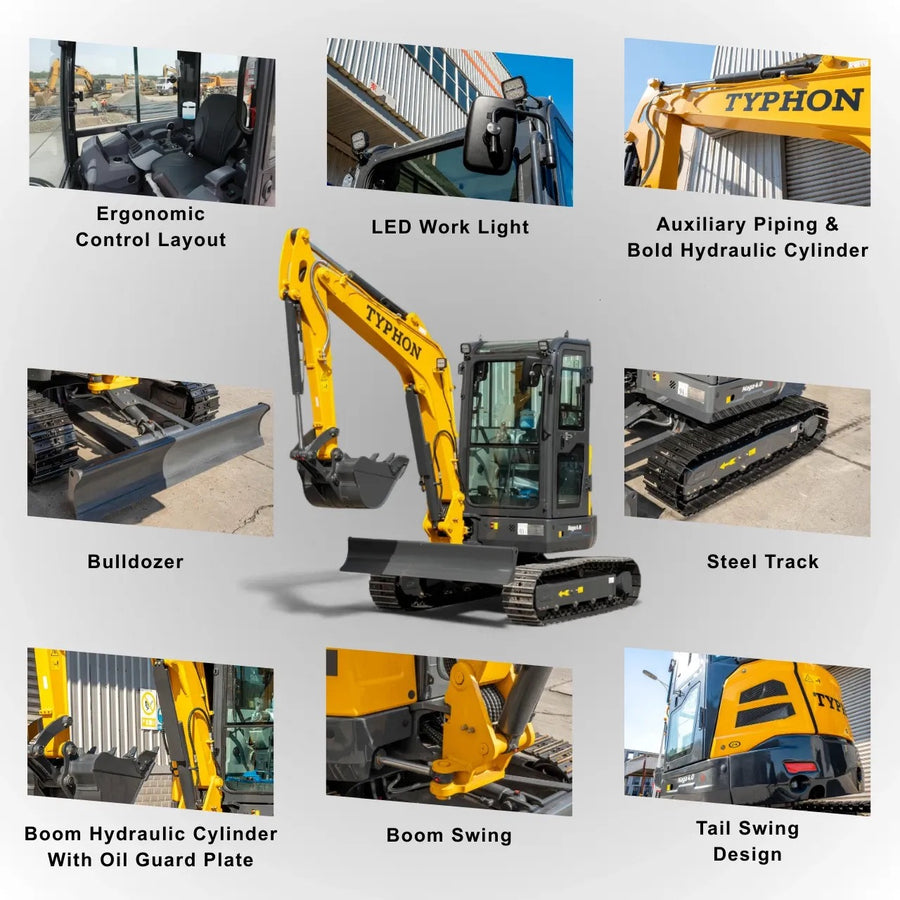

The working diagrams, engine sheet and full feature overview are in the product photos above.
What's in the crate, and how it gets to you
In the crate
- 1 x TYPHON NAGA 4.0 4 ton mini excavator, enclosed A/C and heater cab
- 1 x 0.12 m3 / 650 mm digging bucket
- Heavy-duty steel tracks and dozer/trenching blade (fitted)
- Auxiliary hydraulic circuit with three-way stop valve (plumbed)
- 7 inch touchscreen, ISO/SAE selectable controls, suspension seat
- LED work lights, mirrors, openable front glass window
- 1 x tool box, 1 x fire extinguisher, 1 x window-break and seatbelt-cutter tool
- Digital manual, timber freight crate, curbside delivery included
Shipping
Every machine ships strapped inside a timber crate on a flatbed by LTL freight. The carrier calls ahead to book a curbside delivery appointment. Freight is on us - you uncrate, fuel it and go to work.
Shipping, returns and warranty
Shipping and delivery
Returns
Warranty and support
Payment and financing
Do I need a licence or a special trailer?
How do I track my order?
What owners say about this machine
"Arrived as promised and was easy to unload. The ISO/SAE joystick selection makes it easy for any team member to run. Perfect for confined spaces, precise trenching and foundation work."
"Delivery went smoothly and setup was straightforward. It handles tough soil effortlessly thanks to the 30.4 kN bucket force, and the touchscreen makes monitoring easy. Very impressed with performance and comfort."
"Performs flawlessly on urban and commercial sites. The cabin is comfortable for long hours, the metal tracks grip well and the auxiliary hydraulics run our breaker easily. Exceeds expectations for a 4 ton machine."
"Compact but incredibly powerful. The zero tail swing and 360 degree rotation make it perfect for tight urban sites. The Yanmar runs smoothly and the cab with A/C and heater is very comfortable for long shifts."
"Extremely stable on uneven terrain, and the boom swing lets me dig along walls without repositioning. The dual-speed travel makes moving around the site efficient. Excellent power, control and reliability."
"We run it on demolition pads with rebar and broken concrete every week. The steel tracks show almost no wear where rubber would be shredded by now. Freight arrived crated and on schedule."
Owner feedback collected by Excavons. Names shortened at the owner's request.
Prefer rubber tracks and attachments?

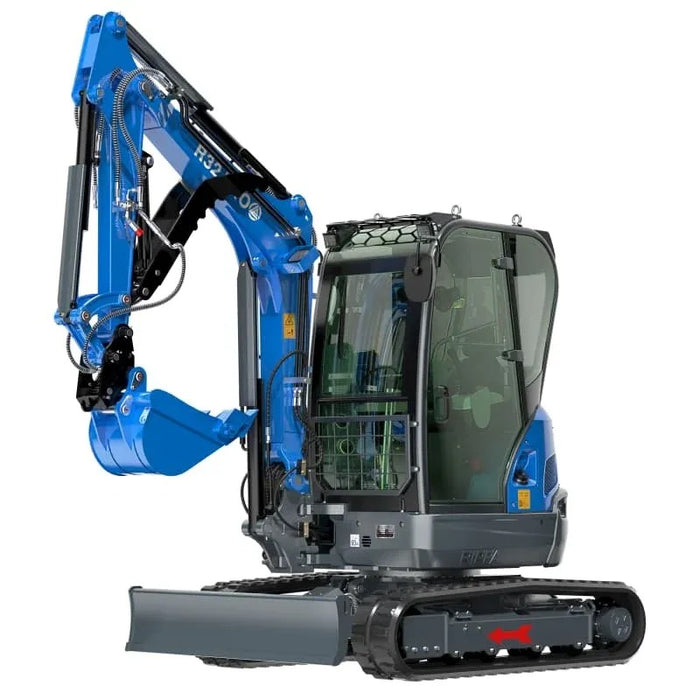

RIPPA R32 - 3.2 Ton Zero Tail Swing Mini Excavator with Kubota Diesel, Enclosed A/C Cab and 12-Piece Attachment Package
